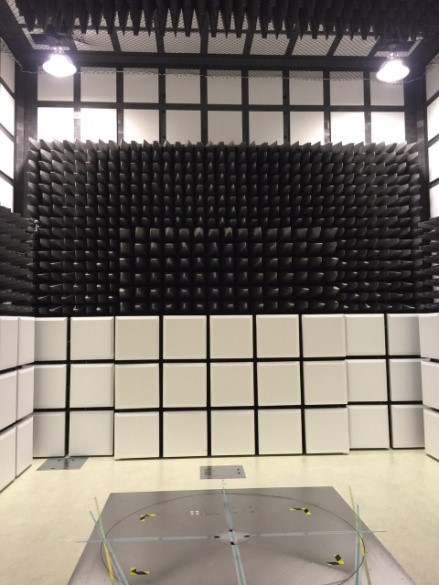

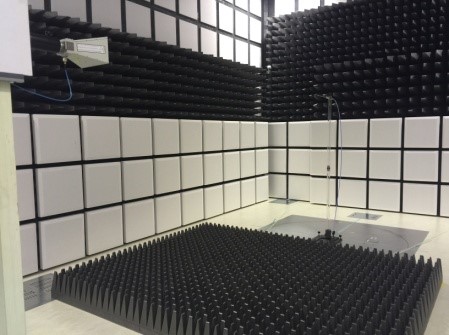

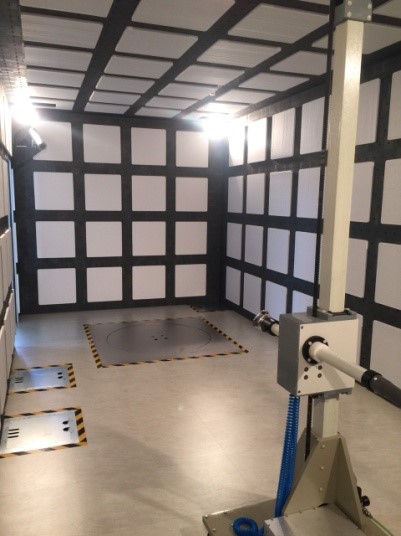

經濟型EMC/RF(修改)測試用電波暗室。

  1. 一般尺寸:7x3x3(H)m;7x4x3(H)m;8x4x4(H)m;5x5x2.9(H)m。
  2. 測試距離:3 米。
  3. 天線高度:固定或 1 至2 米升降。
  4. 反射地面:有(半電波暗室);無(全電波暗室)。
  5. 驗證方式:場地比對、場地均勻度(IEC/EN 61000-4-3)、Free space NSA、VSWR/Reflectivity測試
Economic EMC/RF(Debugging) compact chamber.

  1. General dimension: 7x3x3(H)m; 7x4x3(H)m; 8x4x4(H)m.
  2. Measurement distance: 3 meter.
  3. Antenna height: Fixed or moveable between 1 to 2 meter.
  4. Ground plane: with (semi anechoic chamber); without (Fully anechoic chamber).
  5. Verification: Correlation with OATS and standard chamber, field uniformity (IEC/EN 61000-4-3), Free space NSA、VSWR/Reflectivity measurement.

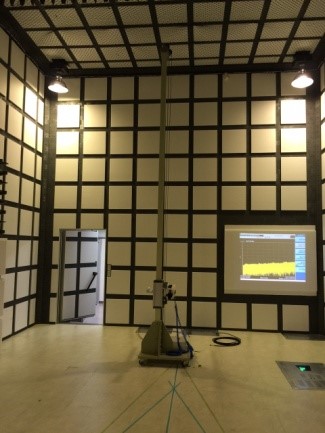

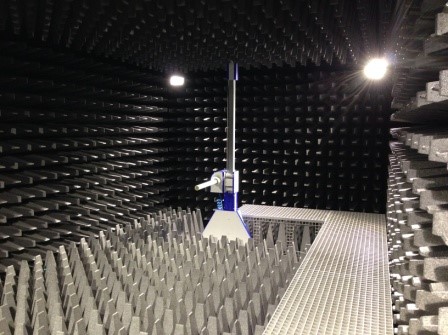

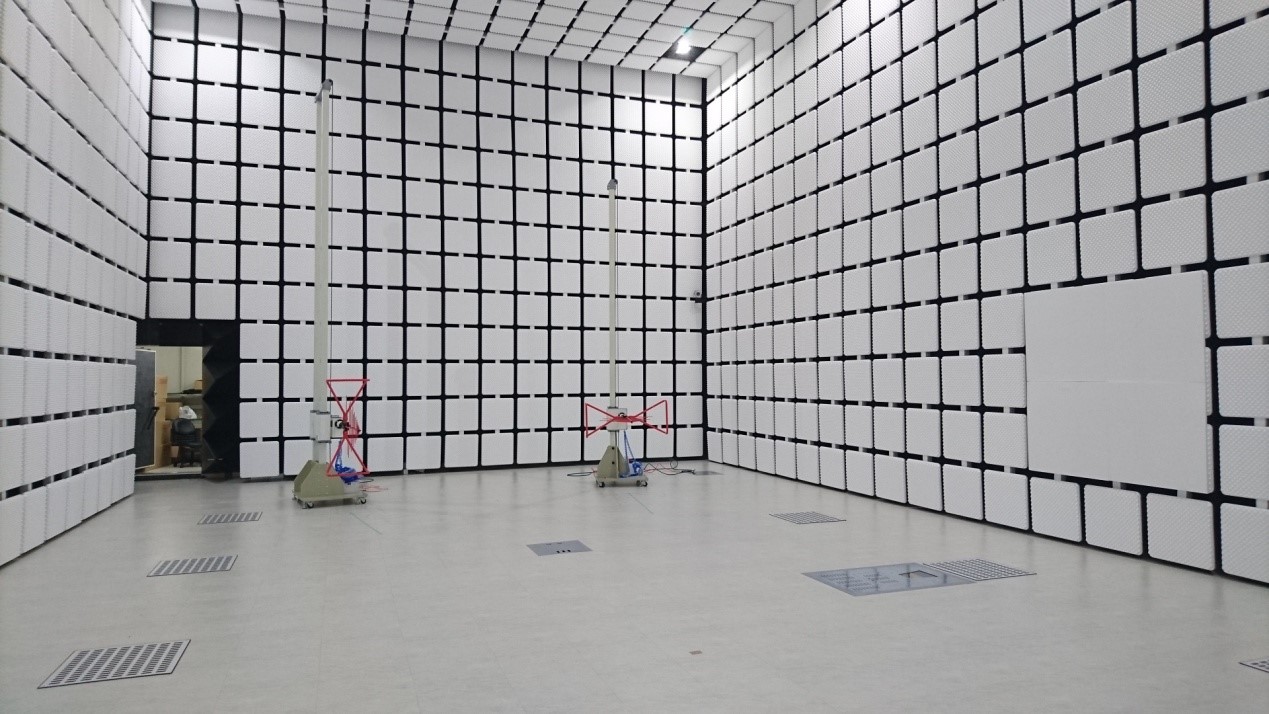

標準型EMC/RF 測試用電波暗室。

  1. 型式:3米法暗室;10米法暗室;3/5米法RF Chamber。
  2. 測試距離:3、5、10米。
  3. 天線高度: 1至4米升降或固定(RF Chamber)。
  4. 反射地面:有(半電波暗室);無(全電波暗室)。
  5. 驗證方式:場地衰減(NSA)、場地均勻度(FU;IEC/EN 61000-4-3)、Free space NSA、VSWR/Reflectivity測試。
Standard EMC/RF measurement chamber.

  1. Type: 3m chamber;10m chamber;3/5m RF (fully) chamber。
  2. Measurement distance: 3、5 and 10 meter.
  3. Antenna height: Fixed (for RF chamber without ground plane) or 1 to 4 meter scan (for EMC chamber with ground plane).
  4. Ground plane: With (semi anechoic chamber); Without (Fully anechoic chamber).
  5. Verification: NSA(Normalized Site Attenuation-ANSI C63.4、CISPR 16-1-4 and VCCI), FU(Field uniformity-IEC/EN 61000-4-3), Free space NSA(CISPR 16-1-4 and ETSI 300 xxx), VSWR/Reflectivity measurement(ASNI C63.4、CISPR 16-1-4 and ETSI 300 xxx), CISPR 25.
