  Absorber from DMAS/Netherland~

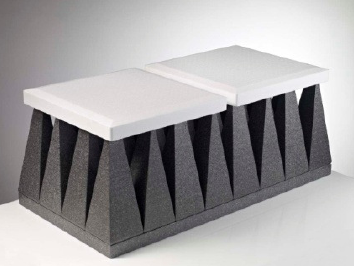

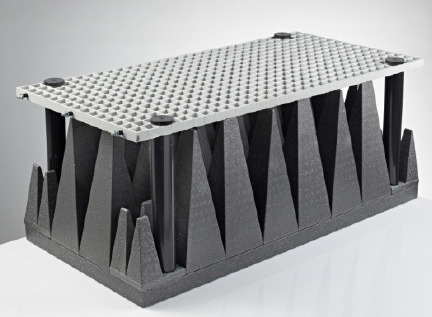

 MT Series (Microwave type1)), right hand side with walkway on top.

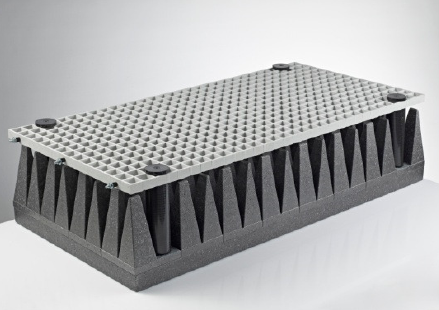

 HT Series (Hybrid type2)), right hand side with walkway on top.

特點(Feature)
  1. Material(材質): Polystyrene (EPS)3)
  2. 防潮, 耐用
    (Anti-moisture, Solid/Durable)
  3. 底座安裝無需膠水, 螺絲固定安裝, 完整拆卸, 100% 可重覆再使用。
    (No glue for installation on base, fixing by screws, removable w/o damage, 100% re-useable)
  4. 無塵室規格:class 4 as per ISO14644-1 / class 10 as per US Fed. Standard 209E
    (Clean room spec.: class 4 as per ISO14644-1 / class 10 as per US Fed. Standard 209E)
  5. 耐用年限長,正常使用可以達四十年。
    (Life time 40 years)
  6. 防火等級: ISO 11925-2 class E / DIN 4102 class B2 / NRL 8093 test 1,2,3
    (Fire retardancy: ISO 11925-2 class E / DIN 4102 class B2 / NRL 8093 test 1,2,3)


  7.   1) Microwave type: Mainly for OTA/antenna chamber or for high band application w/o ferrite tile.
      2) Hybrid type: Mainly for EMC chamber, working with ferrite tile.
      3) EPS 發泡聚苯乙烯,採模具射出成型,俗稱保麗龍。

  Absorber from Cuming/USA~

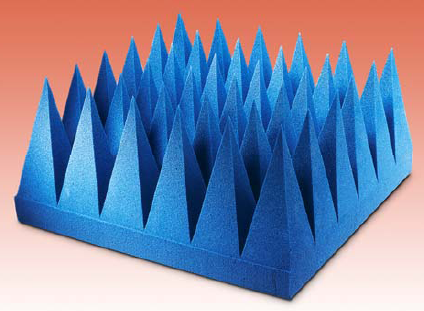

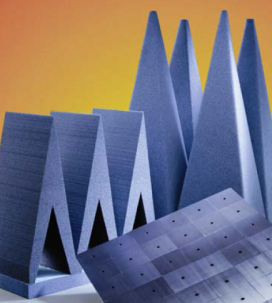

C-RAM SFC Series (Microwave)   C-RAM HFP Series (Hybrid type)

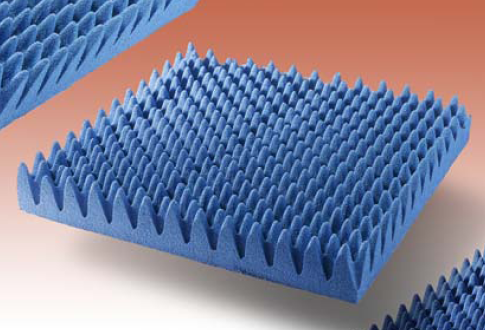

C-RAM FLX Series (flexible sheet )   C-RAM FAC series(flexible urethane foam)

Note: Other C-RAM series for products design or other applications, please go http://www.cumingmicrowave.com for more detail

  Absorber from AEMI/USA~

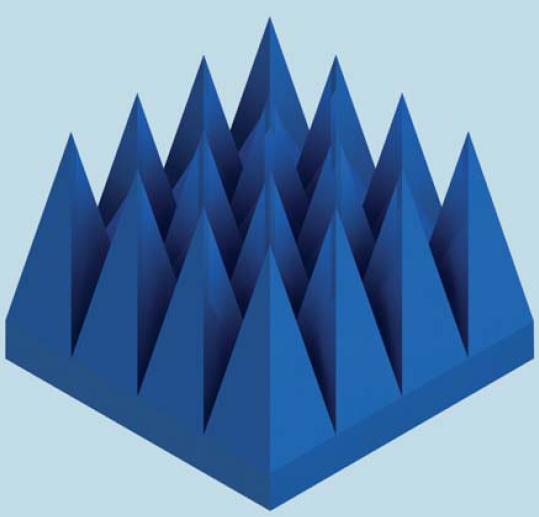

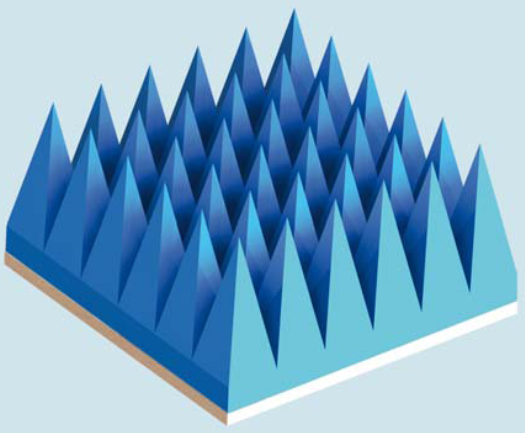

AEP Series (Microwave)   AEPH Series (Hybrid type)
Note: Other C-RAM series for products design or other applications, please go
http://www.mvg-world.com/products/field_product_family/absorber-6 for more detail

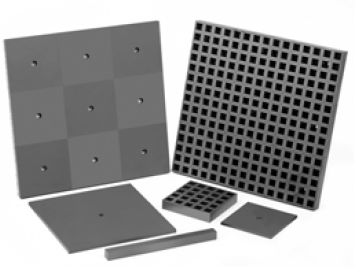

 Ferrite tile from SAMWHA/Korea~

HSN Series (Mn)   SN Series (Ni)
